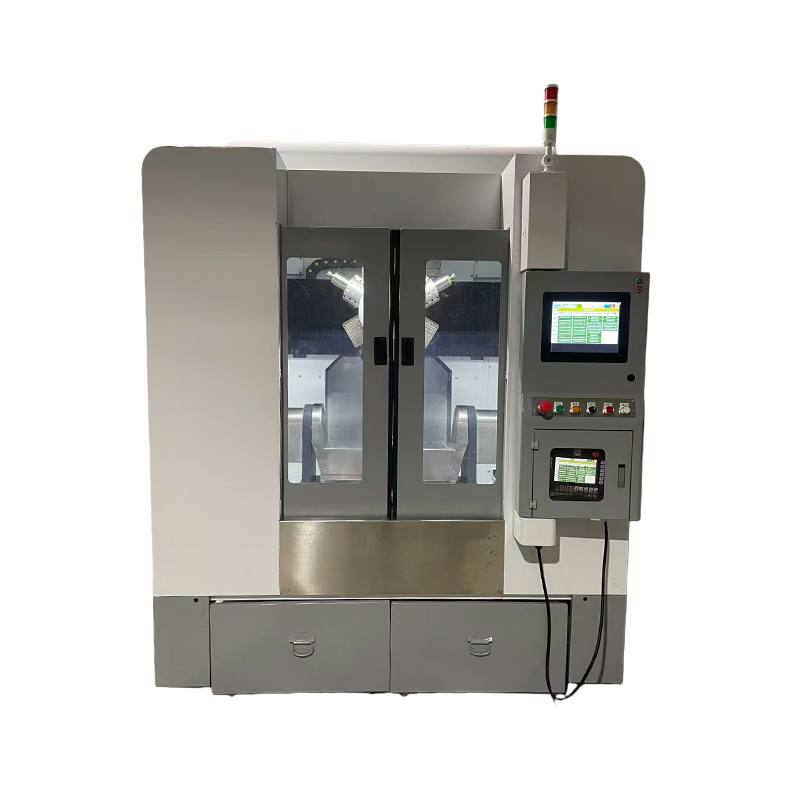

Ruifeng Precision Deburring Equipment Product Basic Parameter Table | |||||
Model/Parameter Table | BJ-400M-6T | BJ-700M-6T | BJ-1000M-6T | BJ1500M-6T | BJ-1000GY-6T |
Number of axes | 6 | 6 | 6 | 6 | 6 |
X-axis travel lx01 | 500mm | 720mm | 1050 | 1600 | 1050 |
Y-axis travel Ly01 | 430mm | 600mm | 500 | 600 | 500 |
Z-axis travel Lz01 | 300mm | 350mm | 400 | 450 | 400 |
A-axis rotation angle | ±105º | ±105º | ±105º | ±105º | ±105º |
B-axis rotation angle | ±360º | ±360º | ±360º | ±360º | ±360º |
C-axis rotation angle | ±360º | ±360º | ±360º | ±360º | ±360º |
Machinable part envelope circle | 500mm | 710mm | 1050mm | 1600mm | 1050mm |
X-axis repeatability | ±0.01mm | ±0.01mm | ±0.01mm | ±0.03mm | ±0.01mm |
y-axis repeatability | ±0.01mm | ±0.01mm | ±0.01mm | ±0.03mm | ±0.01mm |
Z-axis repeatability | ±0.01mm | ±0.01mm | ±0.01mm | ±0.03mm | ±0.01mm |
A-axis repeatability | ≤1Arc min | ≤1Arc min | ≤1Arc min | ≤1 Arc sec | ≤1Arc min |
B-axis repeatability | ≤1Arc min | ≤1Arc min | ≤1Arc min | ≤1 Arc sec | ≤1Arc min |
C-axis repeatability | ≤1Arc min | ≤1Arc min | ≤1Arc min | ≤1Arc min | ≤1Arc min |
Maximum speed along the X-axis | 48000mm/min | 48000mm/min | 36000mm/min | 20000mm/min | 36000mm/min |
Maximum speed along the Y-axis | 48000mm/min | 48000mm/min | 36000mm/min | 20000mm/min | 36000mm/min |
Maximum speed along the Z-axis | 48000mm/min | 48000mm/min | 36000mm/min | 20000mm/min | 36000mm/min |
Maximum speed of A-axis | 200 °/s | 200 °/s | 200 °/s | 200 °/s | 220 °/s |
B-axis maximum speed | 200 °/s | 200 °/s | 200 °/s | 200 °/s | 220 °/s |
C-axis maximum speed | 200 °/s | 200 °/s | 200 °/s | 200 °/s | 220 °/s |
Maximum processing speed | 80mm/s | 80mm/s | 60mm/s | 60mm/s | 60mm/s |
Maximum load capacity of the workbench | 50KG | 60KG | 80KG | 80KG | 80KG |
Spindle power | 3.5KW | 3.5KW | 4.5KW | 4.5-7.5KW | 4.5KW |
spindle speed | 20,000-24,000 RPM | 20,000-24,000 RPM | 20,000-24,000 RPM | 18,000 rpm | 3000-12000 RPM |
Handle diameter | Φ4~Φ16mm | Φ4~Φ16mm | Φ4~Φ16mm | Φ4~Φ20mm | Φ4~Φ16mm |
Operating voltage | AC380V | AC380V | AC380V | AC380V | AC380V |
Total drive power | 15KW | 20KW | 25KW | 45 | 55KW |
Overall dimensions | 1530*1800*2322mm | 1900*2230*2497mm | 2100*2951*2758mm | 3800*2500*3300mm | 2100*2951*2758mm |
Total weight | 3T | 4T | 5.5t | 6t | 5.5t |
